Vento Flex

Vento Flex

Combining tube and sheet metal laser cutting, as well as profile cutting capabilities in one machine, high performance, productivity and flexibility are the hallmarks of the Nukon Vento Flex.

The ideal machine for organisations that require maximum flexibility, Vento Flex is also equipped with linear motors for uncompromising speed, control and efficiency.

VENTO FLEX 315 / 420 / 620 – Fibre Laser Cutting Machine

  • Tube, profile and sheet metal laser cutting in one machine
  • High power and high performance
  • Linear motor drives for greater speed, control and cost efficiency
  • Choose from 315, 420 or 620 linear sheet/table sizes
  • Specially designed cutting table for loading/unloading flat sheets, pipes and profiles
  • 2kW, 3 kW, 4 kW and 6kW laser power options
  • Single control for switching from flat sheet to tube and profiles

Vento Flex - Datasheet Back to Tube & Pipe Fibre Laser Machines
Nukon Tube & Pipe Fibre Laser Cutting Machines
Play Video

Machine Features

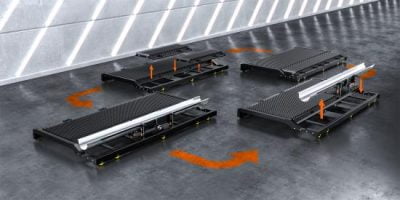

Unison | Vento Flex 0

CUTTING TABLE

A key feature of the Nukon Vento Flex is the specially designed cutting table which is used for loading and unloading both flat metal sheet and tube, pipe and profile materials. Pipe and profile unloading is simplified thanks to a special U-shaped grooved area on the cutting table. Where the full table area is required for unloading metal sheet, removal of the grooved area is simple and straightforward.

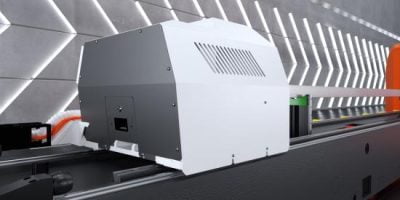

Unison | Vento Flex 1

FEEDING CHUCK

The automated feeding chuck holds materials of between Ø15-Ø150 mm. Jaw clamping benefits from pneumatic drive with adjustable pressure. The profile rotation axis and profile driving axis are servo-motor controlled.
Unison | Vento Flex 2

FRONT CHUCK

The front chuck holds materials of between Ø15 and Ø150mm and benefits from four manually adjusted, supported roller jaws.

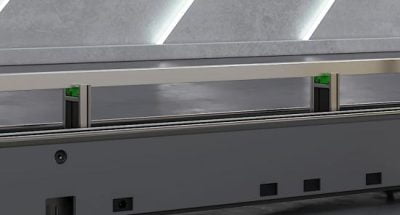

Unison | Vento Flex 3

Optional - SUPPORTS

Ensure secure positioning and zero oscillation of materials during the cutting process according to the cross-section and length of pipes and profiles being cut.
