Opt2Sim Tube Simulation Software

Opt2Sim Suite

Tube simulation software

Developed for ‘Design to Manufacture’ production strategies, our Opt2Sim tube bending simulation software suite uses machine and component data to provide a precise, virtual insight into the tube bending process – before a single trial part is bent. Available in the following versions – or with the option to create your ideal tube bending software package – Opt2Sim’s competitive annual licensing fees make it a highly attractive option.

The Opt2Sim Suite includes:

Opt2Sim Step
Drag and drop STEP files into the software application and extract tube bending data instantly. Or draw parts by entering XYZ coordinates or YBC data and view them in 3D. Quickly convert bending data into printable PDF reports.

Opt2Sim Tube

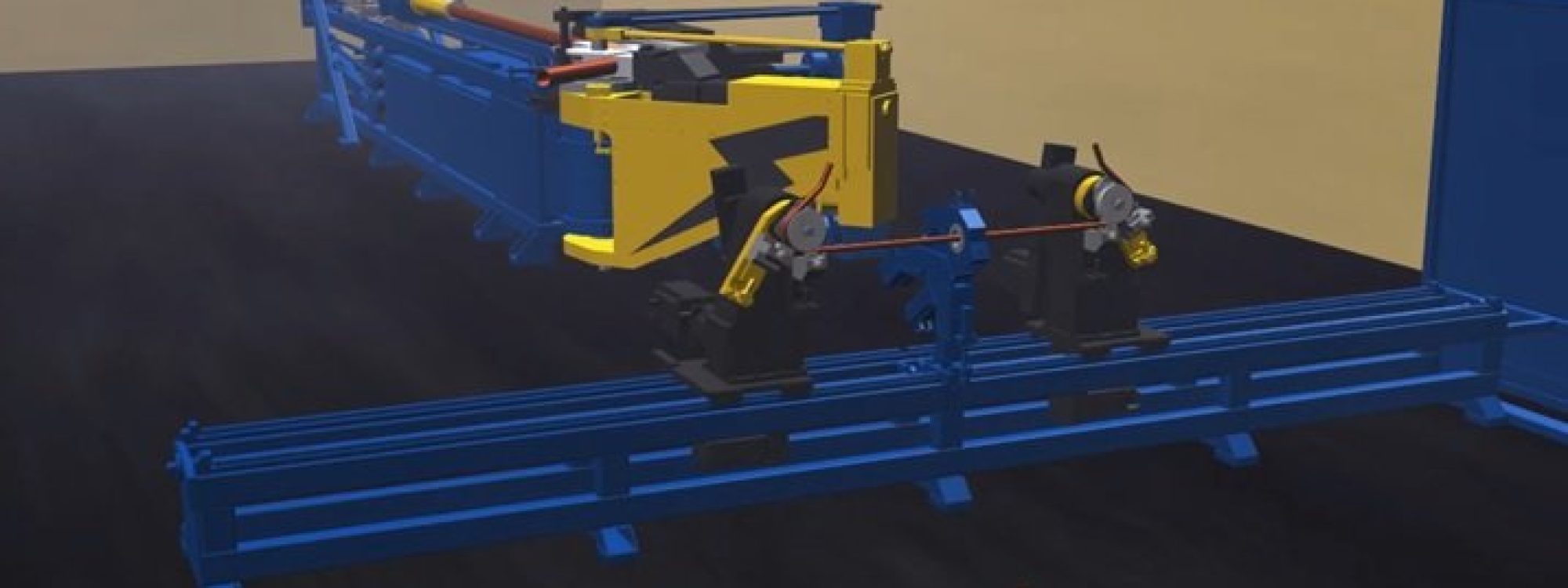

Simulate parts accurately in real time on a CAD-based virtual model of your bending machine, with collision detection and fully automatic smart collision resolution that will find a manufacturing solution for even the most complex tube geometry.

Opt2Sim + WPS
Add our Work Processing System to the simulator, allowing multiple users to batch-process parts on multiple bending machines at once.

Opt2Sim Scan
Rapidly process 3D scans of bent parts to extract tube geometry. Compare and align scans to master data with a single click, and export tube corrections to a PDF report or direct to the bending machine in Supravision format.

See it in action

V-Tube Laser - for measuring and qualifying tube shapes, and correcting bending machines

In addition to offering Opt2Sim Suite, we are also proud to be agents for VTube-LASER – software for measuring tube and pipe with scan arms.

VTube-LASER connects to HEXAGON Absolute Arms, FARO ScanArms, Revware MicroScribe Arms (tactile), Baces arms (tactile), and HEXAGON Leica Absolute Scanners with Trackers.

To discuss which solution best suits your tube measuring needs, contact us today.
