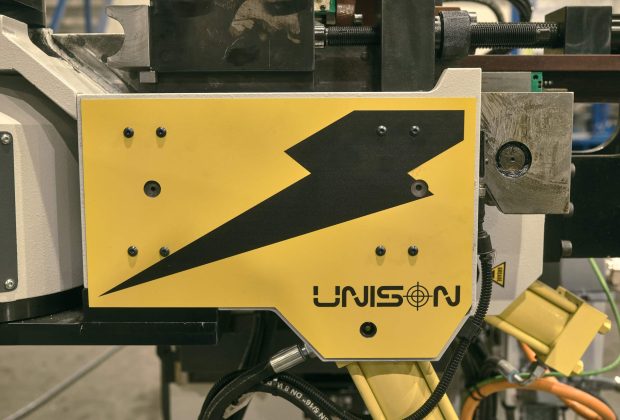

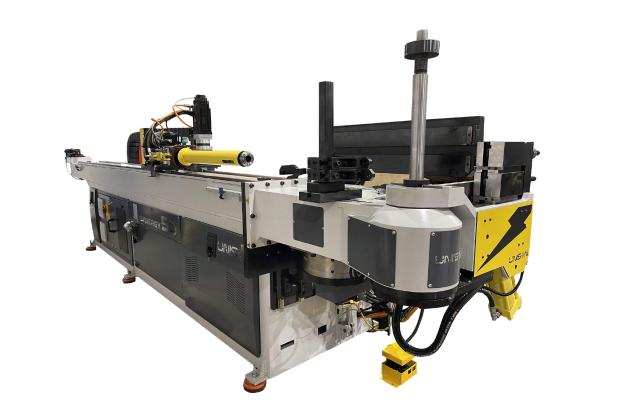

Developed to make Unison quality and reliability accessible to even more companies involved in tube manipulation, Unison Synergy machines combine precise electric control with advanced, near-silent hydraulic operation.
Ideal for manufacturers and subcontractors who carry out repetitive tube bending tasks – and available in 50 mm and 80 mm (maximum tube diameter) versions – Synergy machines feature user-friendly Unibend touchscreen control, industry leading motors and drives, and exceptional power and rigid mechanical design.
Choosing Synergy means benefiting from exceptional levels of control, with functionality and user-friendly features similar to Unison Breeze machines.
Unison Synergy tube benders may be more accessibly priced than Breeze models, but that’s not at the expense of quality. Plus just like Unison Breeze machines, they are backed by our legendary high levels of service and aftersales support.
| Size | Synergy 50 mm | Synergy 80 mm |
|---|---|---|
| Bending Torque | 5,000 Nm | 25,000 Nm |
| Bending Capacity | 50.8 x 2.55 mm | 80 x 2 mm |
| Y Axis (DBB) | 1,000 mm/sec | 1,000 mm/sec |
| B Axis (POB) | 200 deg/sec | 200 deg/sec |
| C Axis (Bend) | 90 deg/sec | 45 deg/sec |
| Max Bend Radius | 170 mm | 280 mm |
| Max Bend Angle | 180° | 180° |
| Max Tube Length | 4.0 m (6.0 m) | 4.0 m (6.0 m) |
| Max Tube Length (Collet Cap of 38.1 mm) | 5.5 m (7.5 m) | 5.5 m (7.5 m) |
| Repeatability/Accuracy | Feed: 0.1 mm Bend: 0.1° Rotation: 0.1° | Feed: 0.1 mm Bend: 0.1° Rotation: 0.1° |
| Length | 6.5 m (8.5 m) | 6.9 m (8.9 m) |
| Width | 1.2 m | 1.4 m |
| Load Height | 1.1 m | 1.3 m |
| Power Supply | 380/400V for 50/60Hz | 380/400V for 50/60Hz |
